Name: City Streets - VDOT Functional Class

Display Field: ROADNAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: City streets of Harrisonburg Virginia with address ranges. This layer is used for navigation and routing within the City and to support emergency services.

Service Item Id: 348bd76f827d4a0eb1613b61c51cf0bc

Copyright Text: City of Harrisonburg

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 577790.554289

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 1.136323051609616E7
YMin: 6825322.421686396
XMax: 1.1389771842606574E7
YMax: 6861536.9578529745
Spatial Reference: 102746  (2283)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: VDOTFC
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
Style: esriSLSSolid
Color: [130, 130, 130, 255]
Width: 1
Default Label: No Data
UniqueValueInfos:
• Value: INTERSTATE
  Label: Interstate
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 92, 230, 255]
  Width: 4
• Value: OTHER PRINCIPAL ARTERIAL
  Label: Other Principal Arterial
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [230, 0, 0, 255]
  Width: 4
• Value: MINOR ARTERIAL
  Label: Minor Arterial
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [38, 115, 0, 255]
  Width: 4
• Value: MAJOR COLLECTOR
  Label: Major Collector
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [132, 0, 168, 255]
  Width: 4
• Value: MINOR COLLECTOR
  Label: Minor Collector
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [230, 230, 0, 255]
  Width: 4
• Value: INTERSTATE RAMP
  Label: Interstate Ramp
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 92, 230, 255]
  Width: 4
• Value: NONE
  Label: Local Road
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [252, 197, 182, 255]
  Width: 1
Transparency: 0
Labeling Info:
Label Placement: esriServerLinePlacementCenterAlong
Label Expression: N/A
Use Coded Values: true
Symbol:
Color: [255, 255, 255, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 10
Font Family: AvenirNext LT Pro Regular
Font Style: normal
Font Weight: normal
Font Decoration: none

Min. Scale: 1000.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• ID ( type: esriFieldTypeDouble, alias: ID )
• SEQUENCE ( type: esriFieldTypeDouble, alias: SEQUENCE )
• ROADNAME ( type: esriFieldTypeString, alias: ROADNAME, length: 60 )
• ROADNAMEPR ( type: esriFieldTypeString, alias: Roadname Prefix, length: 10 )
• ROADNAMESU ( type: esriFieldTypeString, alias: ROADNAMESU, length: 14 )
• ALLROADNAM ( type: esriFieldTypeString, alias: ALLROADNAM, length: 50 )
• ROAD_DESIG ( type: esriFieldTypeString, alias: ROAD_DESIG, length: 40 )
• ROAD_CLASS ( type: esriFieldTypeString, alias: ROAD_CLASS, length: 40 )
• ROADTYPE ( type: esriFieldTypeString, alias: ROADTYPE, length: 10 )
• ROUTENUM ( type: esriFieldTypeString, alias: ROUTENUM, length: 10 )
• STARTLEFT ( type: esriFieldTypeDouble, alias: STARTLEFT )
• STARTRIGHT ( type: esriFieldTypeDouble, alias: STARTRIGHT )
• ENDLEFT ( type: esriFieldTypeDouble, alias: ENDLEFT )
• ENDRIGHT ( type: esriFieldTypeDouble, alias: ENDRIGHT )
• LENGTH ( type: esriFieldTypeDouble, alias: LENGTH )
• LOCALITY ( type: esriFieldTypeString, alias: LOCALITY, length: 20 )
• LOCSTARTLE ( type: esriFieldTypeDouble, alias: LOCSTARTLE )
• LOCSTARTRI ( type: esriFieldTypeDouble, alias: LOCSTARTRI )
• LOCENDLEFT ( type: esriFieldTypeDouble, alias: LOCENDLEFT )
• LOCENDRIGH ( type: esriFieldTypeDouble, alias: LOCENDRIGH )
• ESALEFT ( type: esriFieldTypeDouble, alias: ESALEFT )
• ESARIGHT ( type: esriFieldTypeDouble, alias: ESARIGHT )
• COMMUNITYL ( type: esriFieldTypeString, alias: COMMUNITYL, length: 25 )
• COMMUNITYR ( type: esriFieldTypeString, alias: COMMUNITYR, length: 25 )
• ZIPLEFT ( type: esriFieldTypeString, alias: ZIPLEFT, length: 50 )
• ZIPRIGHT ( type: esriFieldTypeString, alias: ZIPRIGHT, length: 50 )
• ATTACHMENT ( type: esriFieldTypeDouble, alias: ATTACHMENT )
• WIDTH ( type: esriFieldTypeDouble, alias: WIDTH )
• ROADNAMEID ( type: esriFieldTypeString, alias: ROADNAMEID, length: 50 )
• STARTX ( type: esriFieldTypeDouble, alias: STARTX )
• STARTY ( type: esriFieldTypeDouble, alias: STARTY )
• ENDX ( type: esriFieldTypeDouble, alias: ENDX )
• ENDY ( type: esriFieldTypeDouble, alias: ENDY )
• CHECKED ( type: esriFieldTypeString, alias: CHECKED, length: 1 )
• LOCALSCHEM ( type: esriFieldTypeSmallInteger, alias: LOCALSCHEM )
• SOURCETHM ( type: esriFieldTypeString, alias: SOURCETHM, length: 16 )
• DATE_MODIF ( type: esriFieldTypeString, alias: DATE_MODIF, length: 10 )
• MSAG_LOW ( type: esriFieldTypeDouble, alias: MSAG_LOW )
• MSAG_HIGH ( type: esriFieldTypeDouble, alias: MSAG_HIGH )
• DESIGNATIO ( type: esriFieldTypeString, alias: DESIGNATIO, length: 50 )
• STREETNAME ( type: esriFieldTypeString, alias: STREETNAME, length: 254 )
• OTHER ( type: esriFieldTypeString, alias: OTHER, length: 254 )
• MSAG_COM_L ( type: esriFieldTypeString, alias: MSAG_COM_L, length: 25 )
• MSAG_COM_R ( type: esriFieldTypeString, alias: MSAG_COM_R, length: 25 )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• LASTPAVED ( type: esriFieldTypeString, alias: LASTPAVED, length: 50 )
• NEXTPAVED ( type: esriFieldTypeString, alias: NEXTPAVED, length: 50 )
• CAD_ComL ( type: esriFieldTypeString, alias: CAD_ComL, length: 50 )
• CAD_ComR ( type: esriFieldTypeString, alias: CAD_ComR, length: 50 )
• VDOT_DESIGNATION ( type: esriFieldTypeString, alias: VDOT_DESIGNATION, length: 50 )
• responsecode ( type: esriFieldTypeString, alias: responsecode, length: 50 )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• ROADNAME_SUFFDIR ( type: esriFieldTypeString, alias: Roadname Suffix Directional, length: 50 )
• ROADNAME_PREMOD ( type: esriFieldTypeString, alias: Roadname Premodifier, length: 50 )
• ROADNAME_POSTMOD ( type: esriFieldTypeString, alias: Roadname Post Modifier, length: 50 )
• SpeedLimit ( type: esriFieldTypeSmallInteger, alias: SpeedLimit )
• HeightRestriction ( type: esriFieldTypeInteger, alias: HeightRestriction )
• WeightRestriction ( type: esriFieldTypeInteger, alias: WeightRestriction )
• OneWay ( type: esriFieldTypeString, alias: OneWay, length: 50 , Coded Values: [FT: One-way street only permitting travel in digitized direction of edge] , [TF: One-way street only permitting travel against the digitized direction of the edge] , [N: Street that does not permit travel in either direction] , ...1 more... )
• TravelTime ( type: esriFieldTypeDouble, alias: TravelTime )
• T_ZLev ( type: esriFieldTypeSmallInteger, alias: T_ZLev )
• F_ZLev ( type: esriFieldTypeSmallInteger, alias: F_ZLev )
• Join_ID ( type: esriFieldTypeInteger, alias: Join_ID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Parity_L ( type: esriFieldTypeString, alias: Parity Left, length: 1 )
• Parity_R ( type: esriFieldTypeString, alias: Parity Right, length: 1 )
• BasemapSym ( type: esriFieldTypeString, alias: Basemap Symbol, length: 50 )
• MTFCC ( type: esriFieldTypeString, alias: Census Class, length: 5 )
• VDOTFC ( type: esriFieldTypeString, alias: VDOT Functional Class, length: 50 )
• MaintEnt ( type: esriFieldTypeString, alias: Maintenance Entity, length: 50 )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

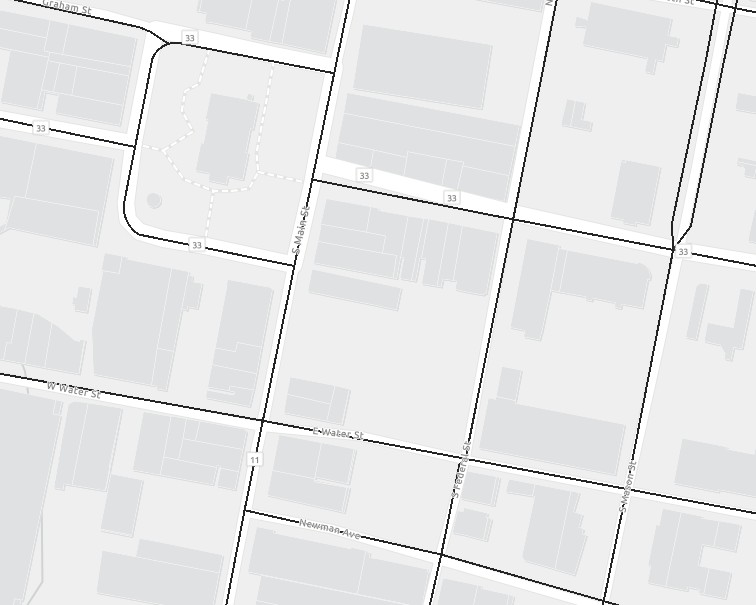

  Iteminfo   Thumbnail   Metadata
